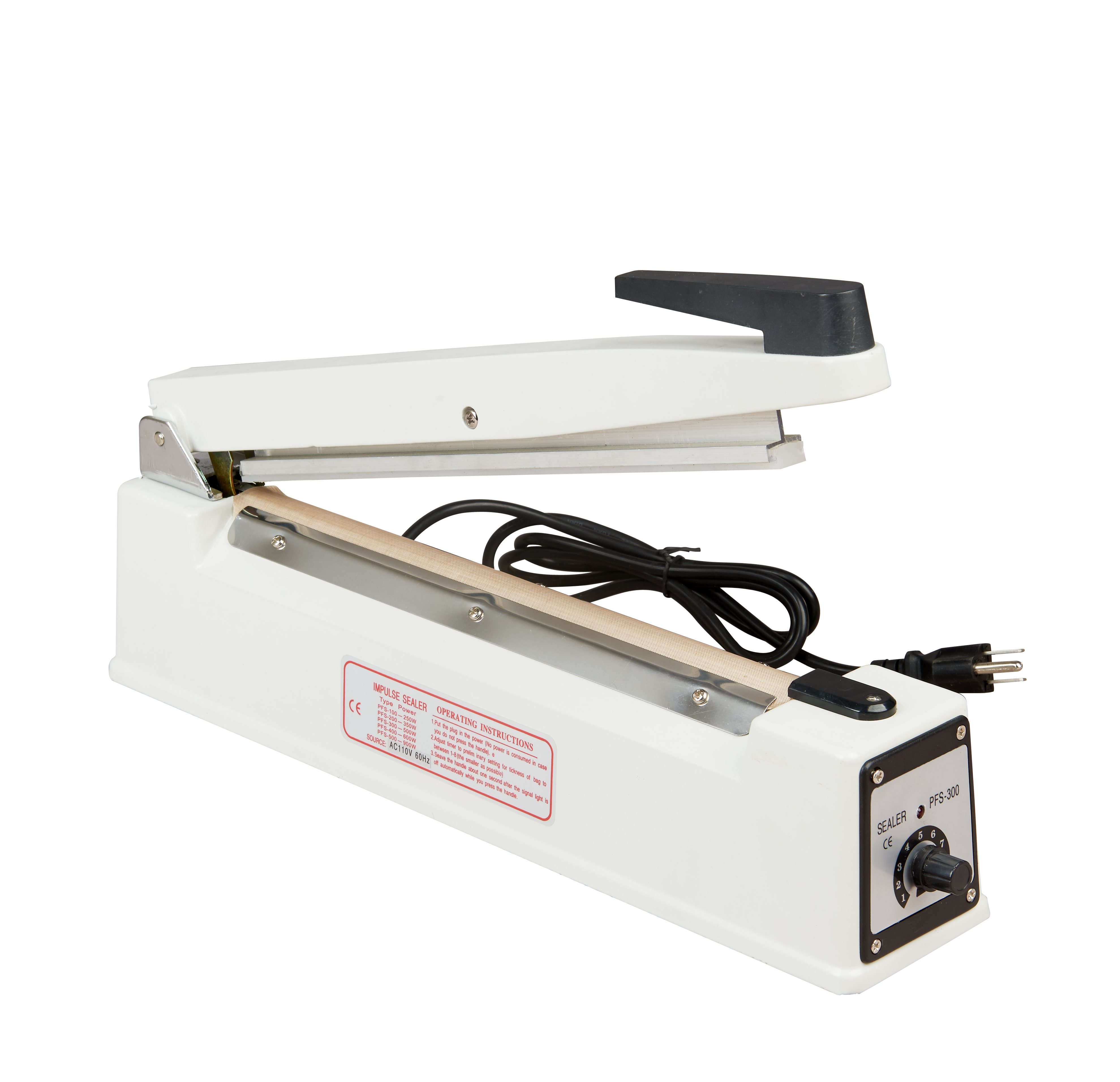

PFS Series series photograph. Model dimensions and supplied configurations may vary.

Bench sealing

PFS Series Hand Impulse Sealers

Name: PFS Series · Hand Impulse Sealers
Brand: FABLE

Aluminum-body hand impulse sealers for everyday bag packaging. Five sealing lengths from 100 to 500 mm.

Overview

A closer look at PFS Series.

A bench-operated impulse format with an aluminum body. Position the bag between the arms, press and release. No warm-up period is required.

Model specifications

Select around your required seam length and material. Electrical configuration and supply details are confirmed with your enquiry.

Specification	PFS-100	PFS-200	PFS-300	PFS-400	PFS-500
Sealing length	100 mm	200 mm	300 mm	400 mm	500 mm
Sealing width	2 mm	2 mm	2 mm	2 mm	2 mm
Specified sealing thickness	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm
Power	250 W	310 W	400 W	600 W	800 W
Electrical supply	AC 220 V, 50 Hz	AC 220 V, 50 Hz	AC 220 V, 50 Hz	AC 220 V, 50 Hz	AC 220 V, 50 Hz
Net weight	1.6 kg	2.8 kg	4.5 kg	5.5 kg	7.5 kg
Machine dimensions	255 × 100 × 165 mm	340 × 105 × 180 mm	470 × 110 × 195 mm	590 × 115 × 210 mm	675 × 115 × 210 mm
Body material	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum

Material suitability depends on the film structure, thickness and sealing conditions. Contact us to discuss your application.

Wholesale enquiry

Share the model, quantity, destination and packaging application. We can discuss the machine configuration and supply requirements.
