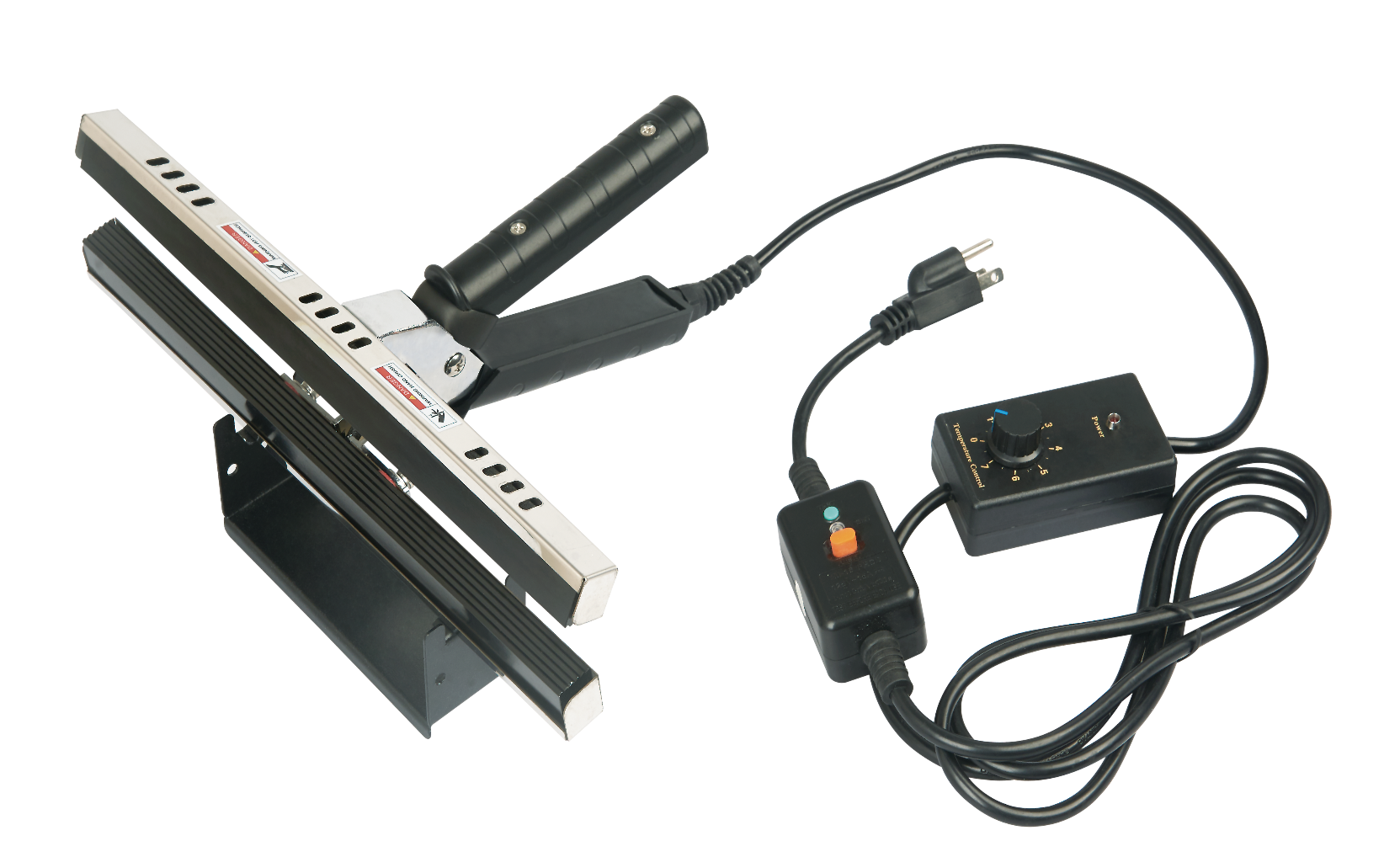

FDR Series series photograph. Model dimensions and supplied configurations may vary.
FDR Series Handheld Jaw Sealers
Handheld sealing jaws with a separate control unit and a 15 mm sealing width. Three models support different purchasing requirements.
- Sealing width
- 15 mm
- Voltage options
- 110 V / 220 V
A closer look at FDR Series.
A handheld jaw format with a separate control unit. The range offers a 15 mm sealing width. Confirm the required bag dimensions and film structure when enquiring.
Compare models.
Select around your required seam length and material. Electrical configuration and supply details are confirmed with your enquiry.
| Specification | FDR-200 | FDR-300 | FDR-400 |
|---|---|---|---|
| Sealing length | 200 mm | 300 mm | Please enquire |
| Sealing width | 15 mm | 15 mm | 15 mm |
| Power | 150 W | 250 W | 350 W |
| Voltage options | 110 V / 220 V | 110 V / 220 V | 110 V / 220 V |
| Net weight | 1 kg | 1.3 kg | 1.5 kg |
| Gross weight | 1.2 kg | 1.5 kg | 1.8 kg |
| Machine dimensions | 205 × 240 × 130 mm | 305 × 240 × 130 mm | 405 × 240 × 130 mm |
Material suitability depends on the film structure, thickness and sealing conditions. Contact us to discuss your application.
Discuss your order.
Share the model, quantity, destination and packaging application. We can discuss the machine configuration and supply requirements.
